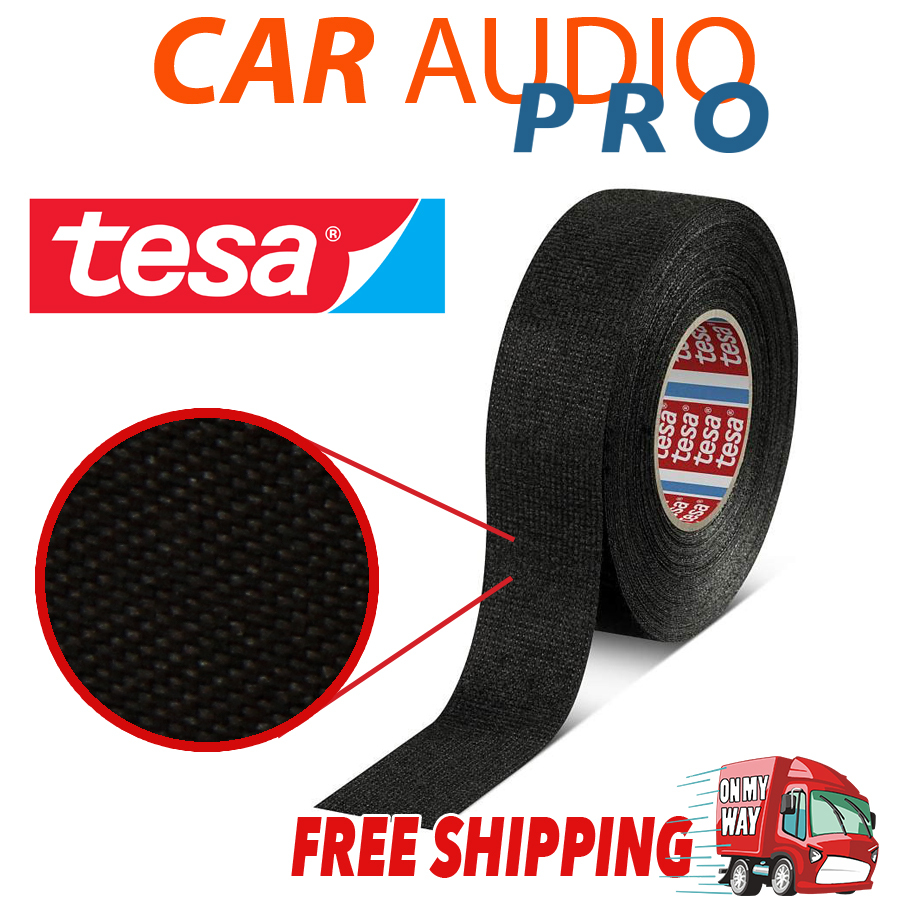

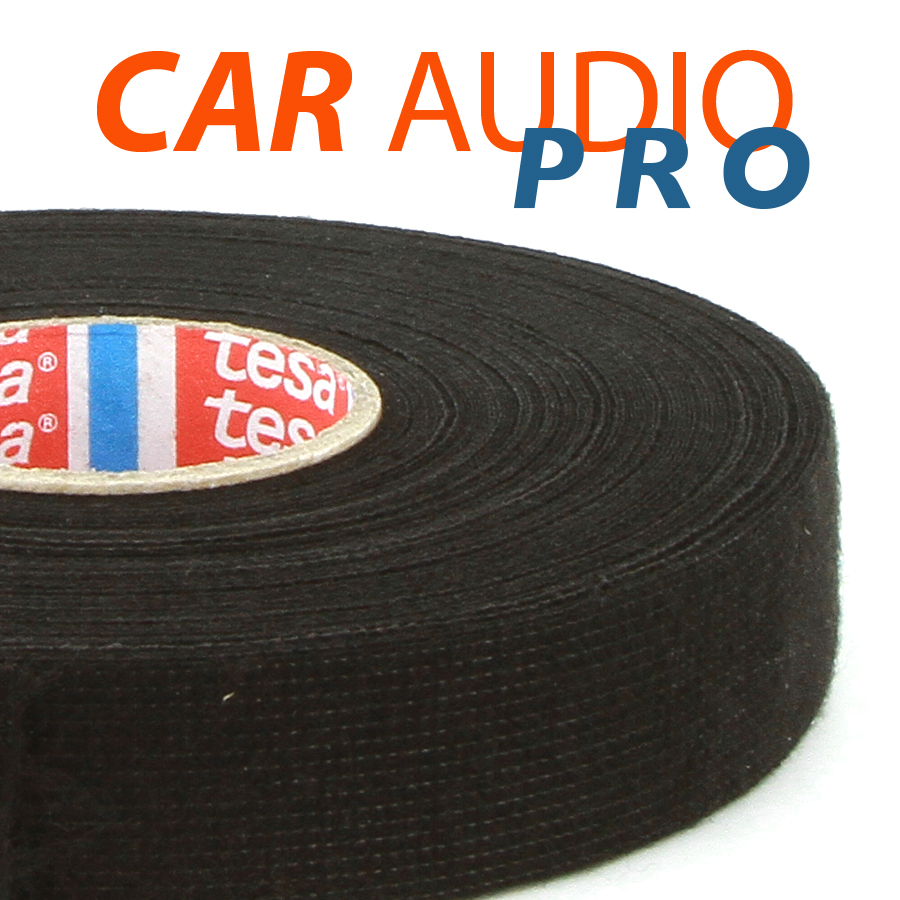

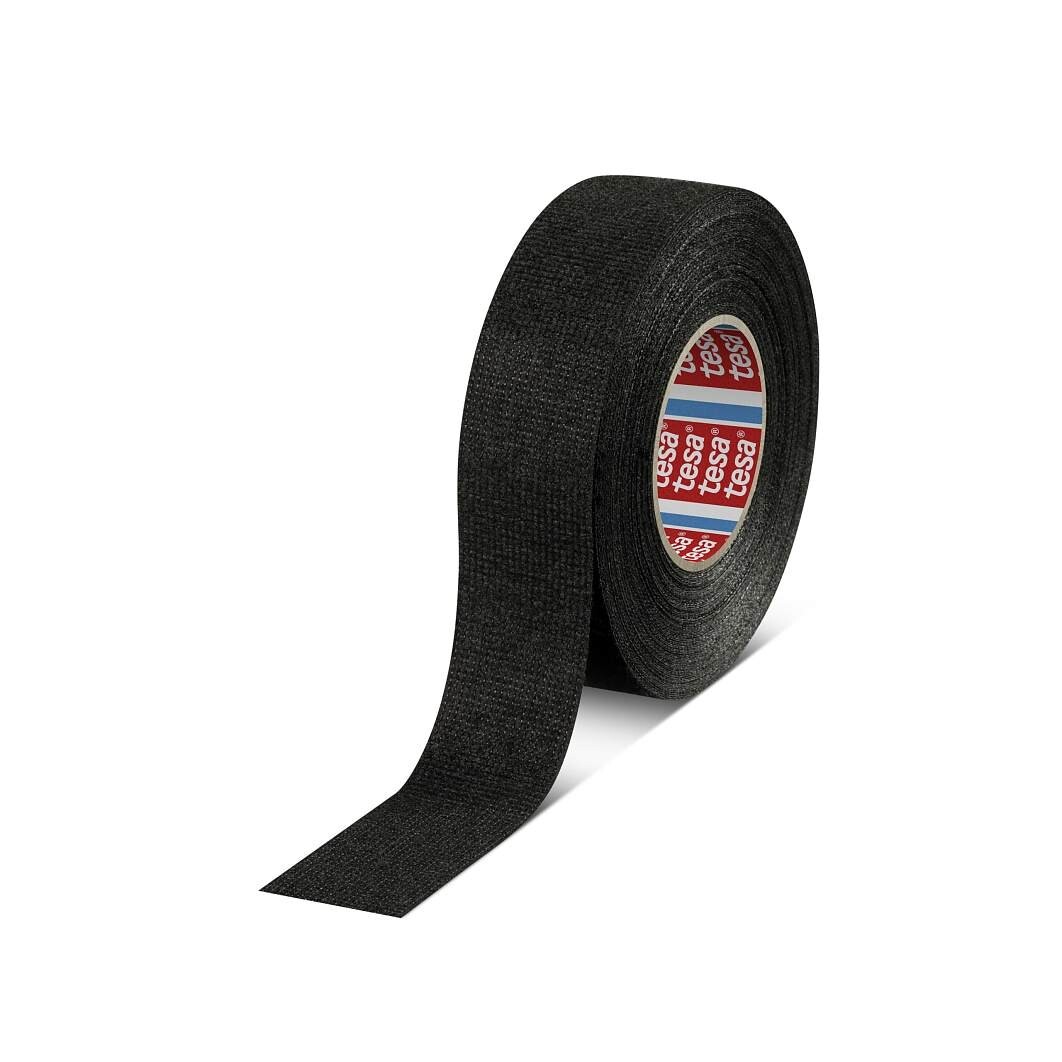

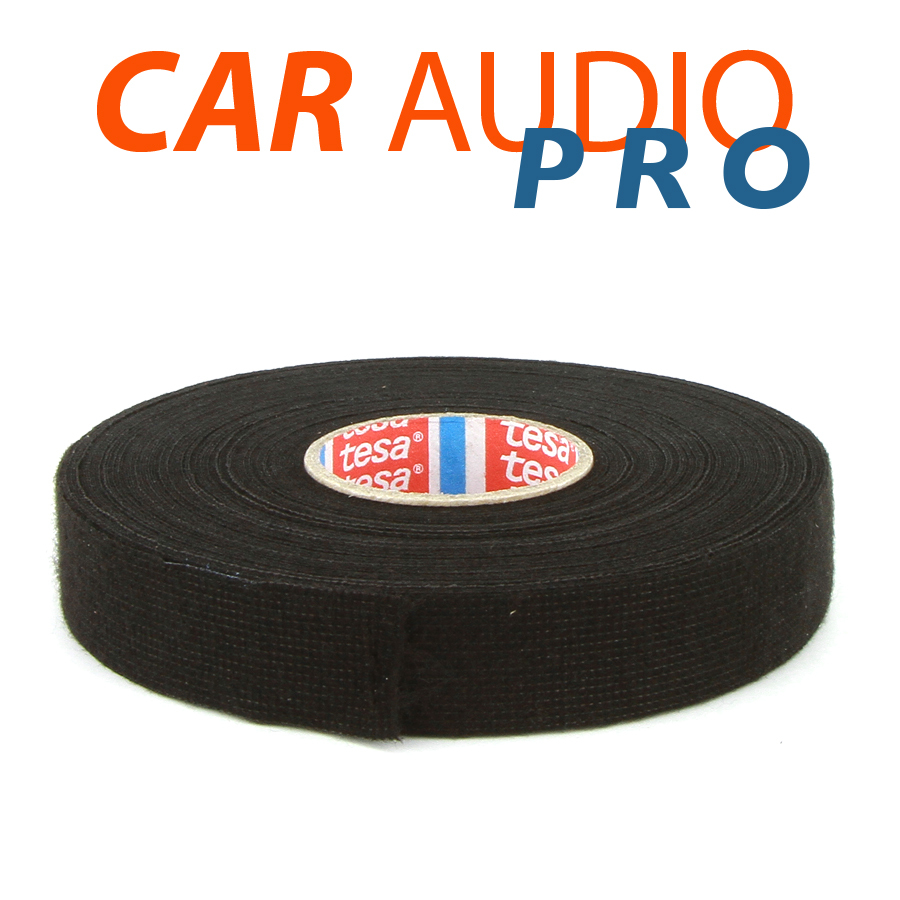

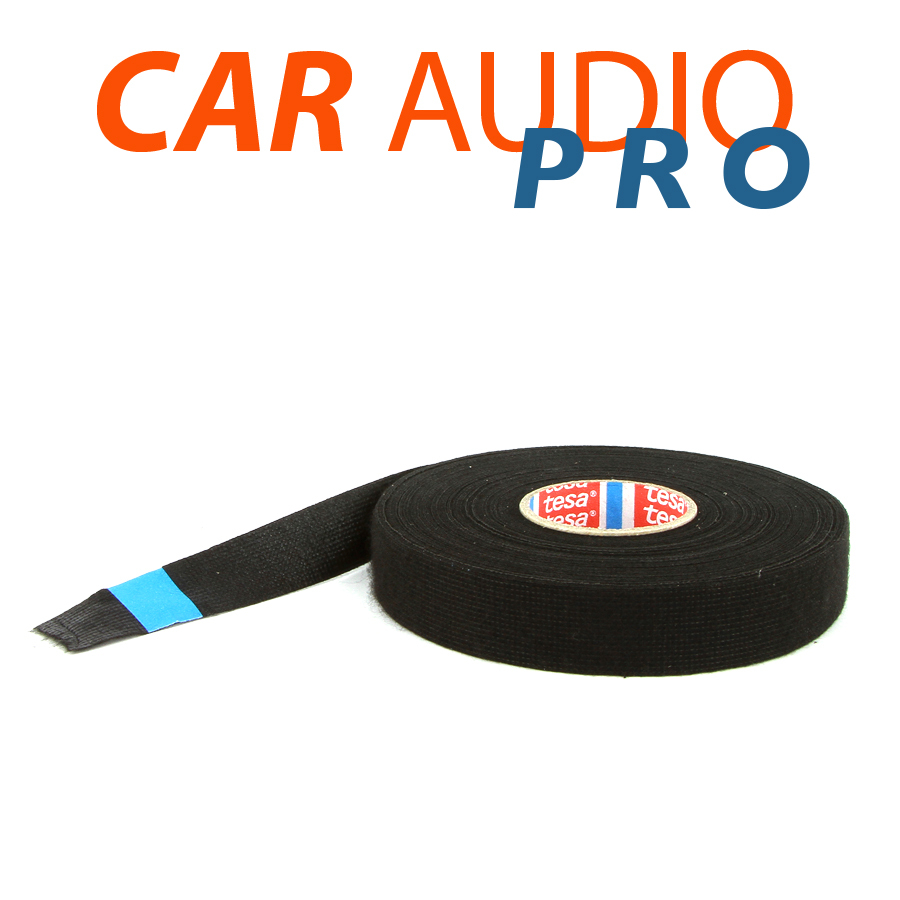

TESA 51608 19mm x 25m, Black Fleece Cloth Tape Cable Looms,Wiring Harness Tape
Tesa 51608 is the universal tape for wire harness bundling in the passenger compartment. It combines important features as noise dampening, abrasion resistance, and bundling strength while keeping harnesses flexible supporting an easy harness assembly process at the OEM.
Tesa 51608 a PET fleece wire harness tape with a rubber based adhesive that is optimized for manual application.
Backing material: PET Fleece
Total thickness: 280 µm
Type of adhesive: Rubber based
Adhesion to steel: 3 N/cm
Elongation at break: 20%
Tensile strength: 40 N/cm
Temperature resistance min: -40°C
Temperature resistance (3000h): 105°C
Abrasion resistance (10mm mandrel): Class B (acc. to LV312)
Abrasion resistance (5mm mandrel): Class A (acc. to LV312)
Flame resistance as composite: Class B (acc. to LV312)
Unwind force (roll width = 9mm): 4.6 N/roll (30 m/min)
Unwind force (roll width > 9mm): 9 N/roll (30 m/min)
Noise damping (decibel): Class C (acc. to LV312)
| SKU | SPL_51608-TesaTape |
