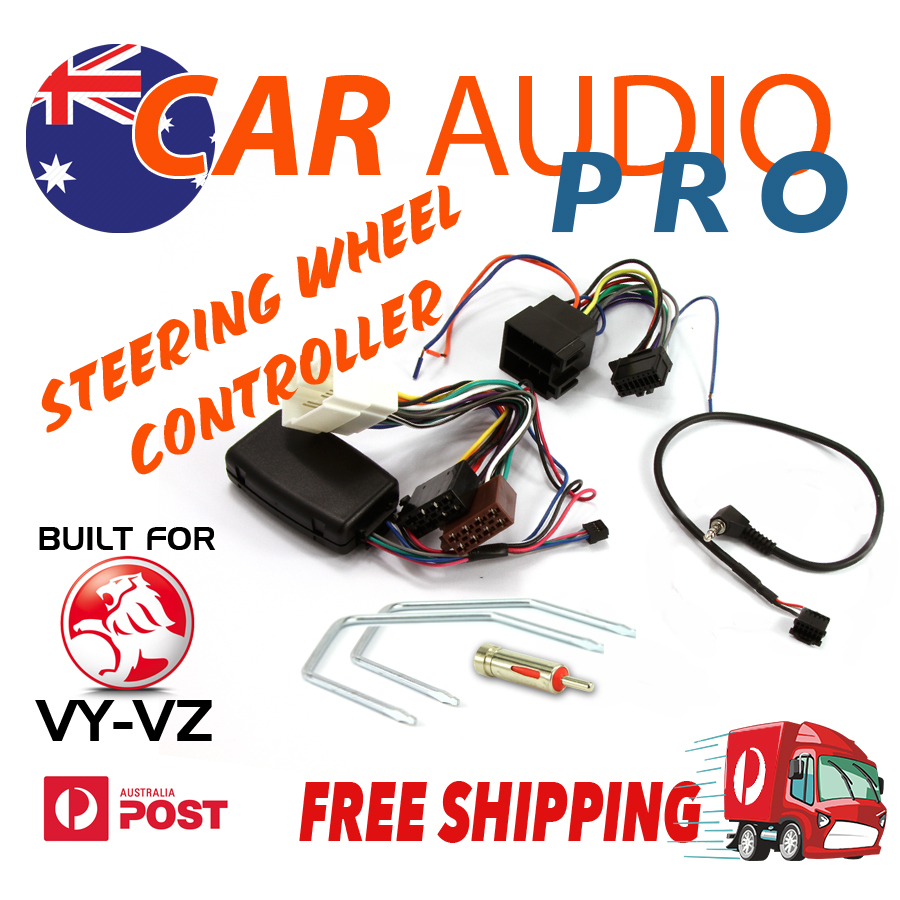

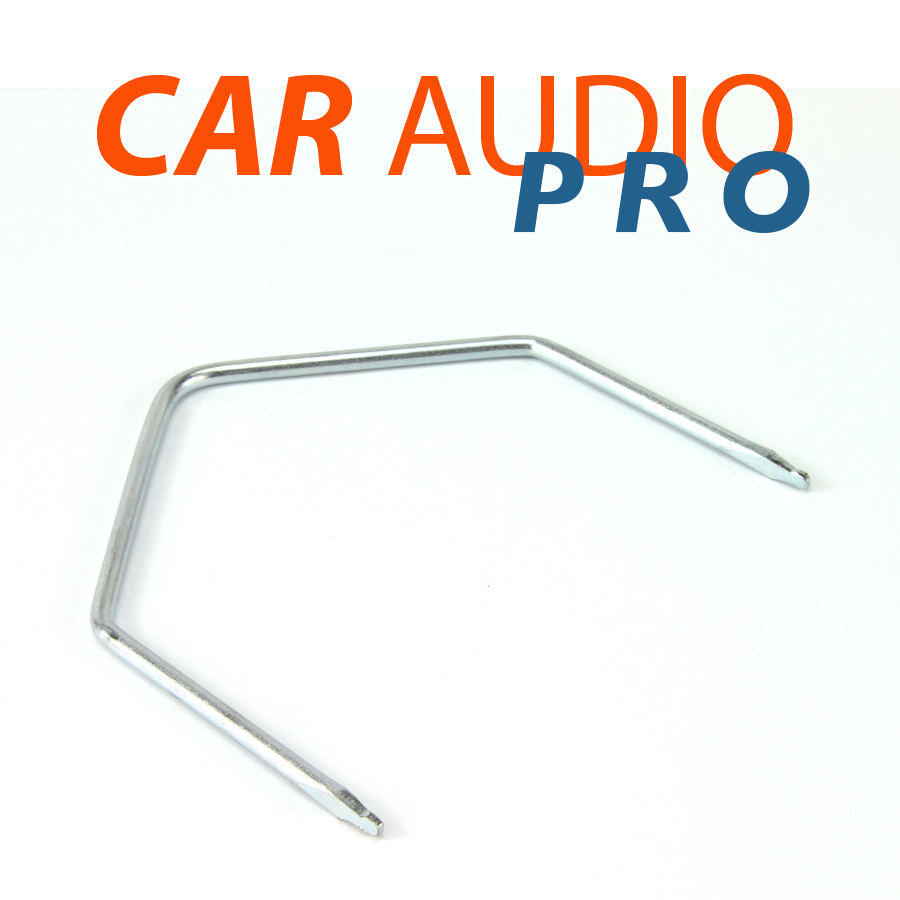

VY-VZ COMMODORE 2 DIN KIT/HARNESS/STEERING WHEEL CONTROL/TOOL HARNESS
This pack is designed as a full turn key solution, ready for you to install your stereo and control your stereo from your steering wheel.
The Steering Wheel Control Harness System is designed to plug directly to your car's existing radio connector and allows you to continue to use the factory fitted steering wheel controls with an aftermarket head unit.
You MUST install a steering wheel ready head unit and must be an:
#Alpine #Clarion #JVC #Kenwood #Pioneer #Sony
We cannot send out the kit until we know what model and brand head unit you have.

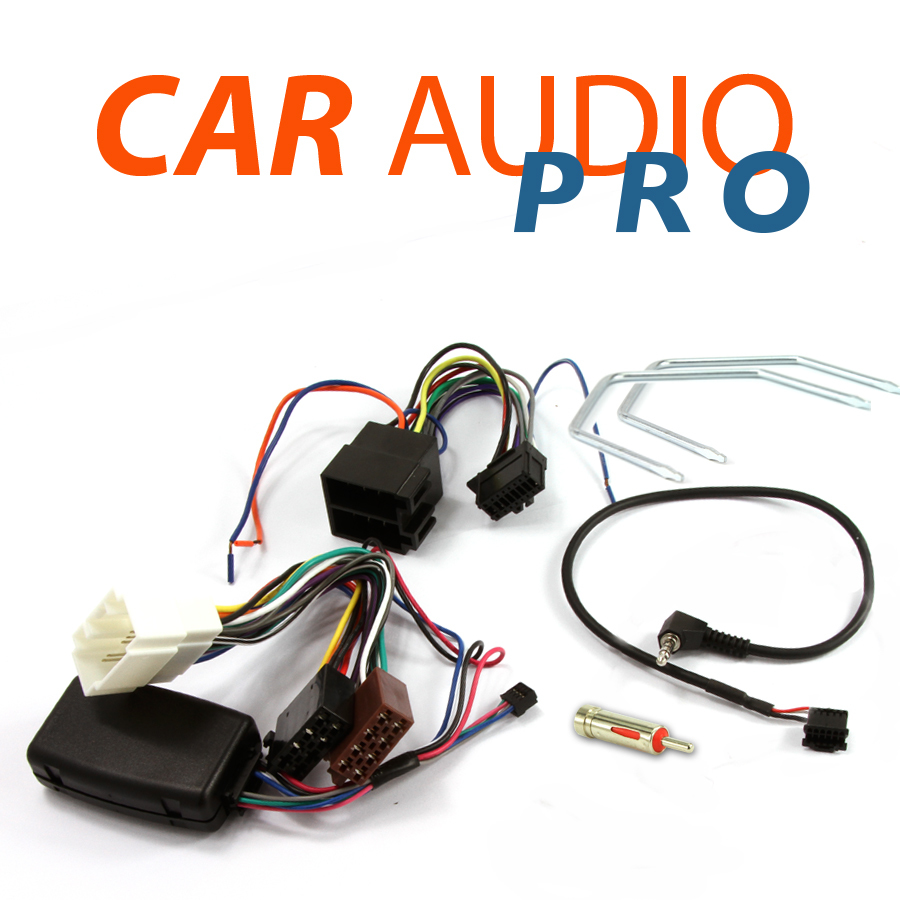

The SWC Harness (primary) has a preprogrammed module, basically it's the black box that reads your car's steering wheel control signal and translates it to a signal that the aftermarket head unit can understand.
The ISO Harness (secondary) plugs directly into the back of the aftermarket head unit leaving male ISO plugs on the other end that we will connect to the female ISO plugs on the SWC Harness.
The Patch Lead links the black module box on the SWC Harness to the SWC input on the aftermarket head unit.

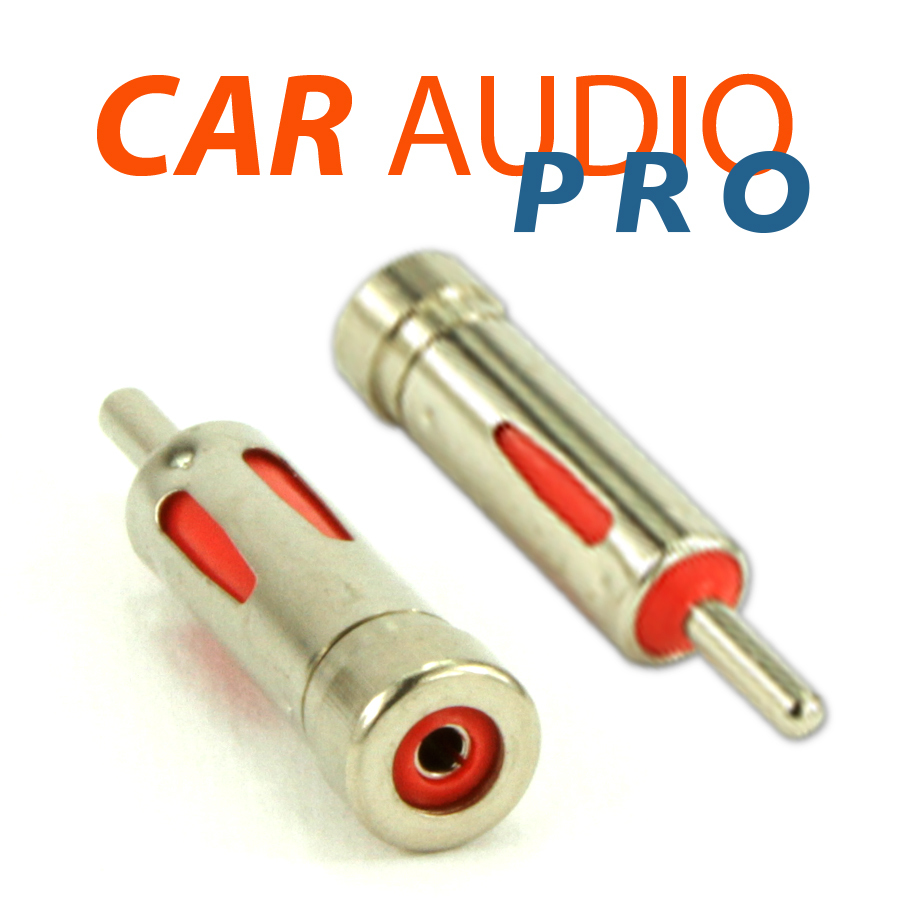

The Antenna Adaptor converts the antenna connection so it can fit an aftermarket head unit.
| SKU | SPL_SWCHL01_PACK_1 |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.270m |
| Shipping Height | 0.170m |
| Shipping Length | 0.700m |
| Shipping Cubic | 0.032130000m3 |
| Unit Of Measure | ea |
