CAR REAR VIEW KIT for 12V Car 5" LCD MONITOR CMOS SENSOR REVERSING CAMERA 170° ANGLE
2 TYPES OF CAMERA MOUNTING HEAD INCLUDED

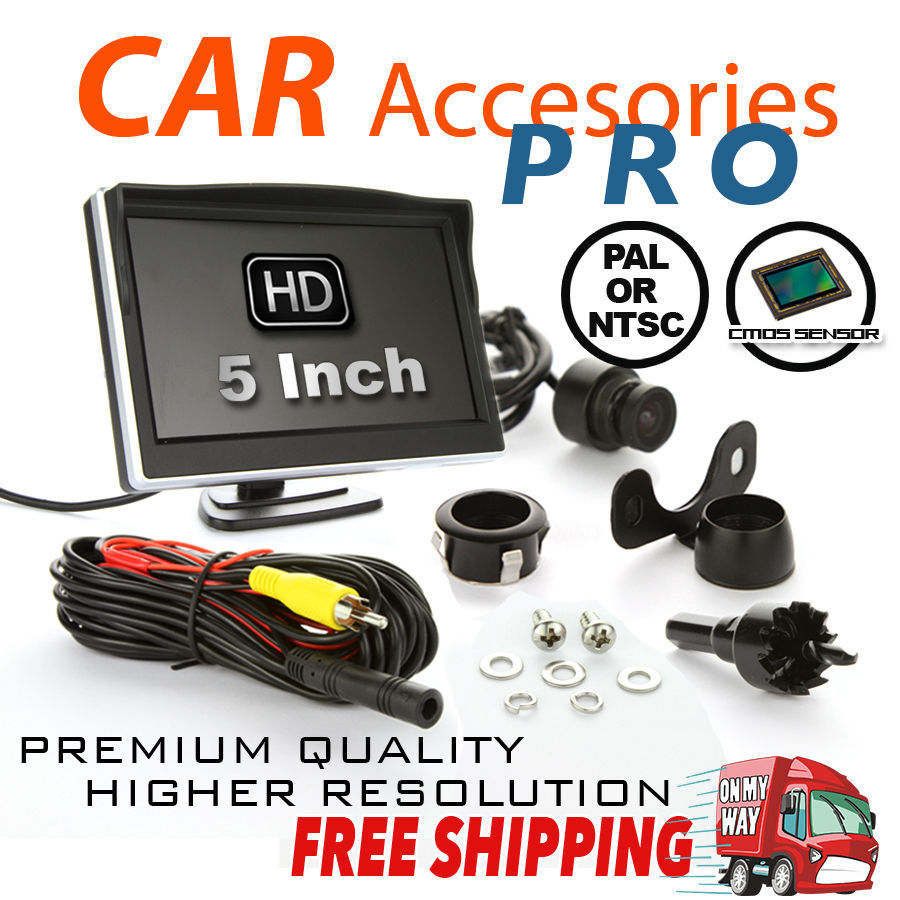

This kit provides a complete safety package incorporating a 5 inch screen and reverse camera in a convenient pack.
This kit includes

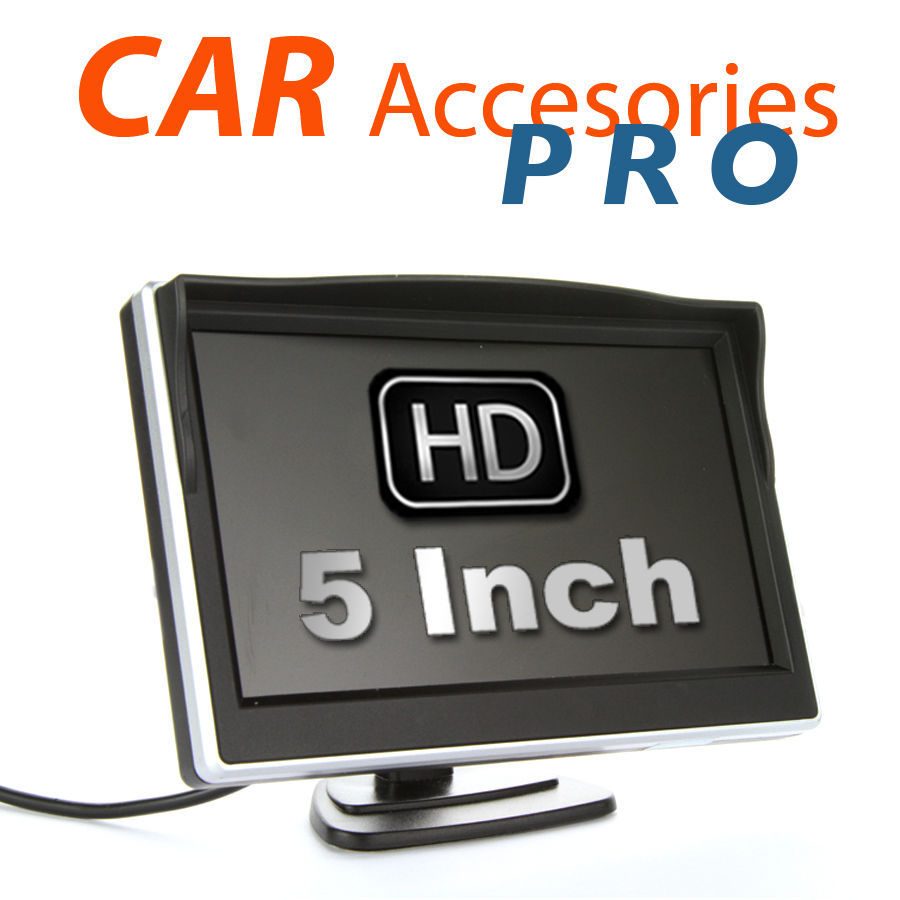

- 5 Inch screen which is compatible with all our cameras models and has a built-in sunvisor, come with a fully adjustable ball joint bracket which is dash mountable with 3M adhesive tape. Has two video inputs and includes 12V power cable.

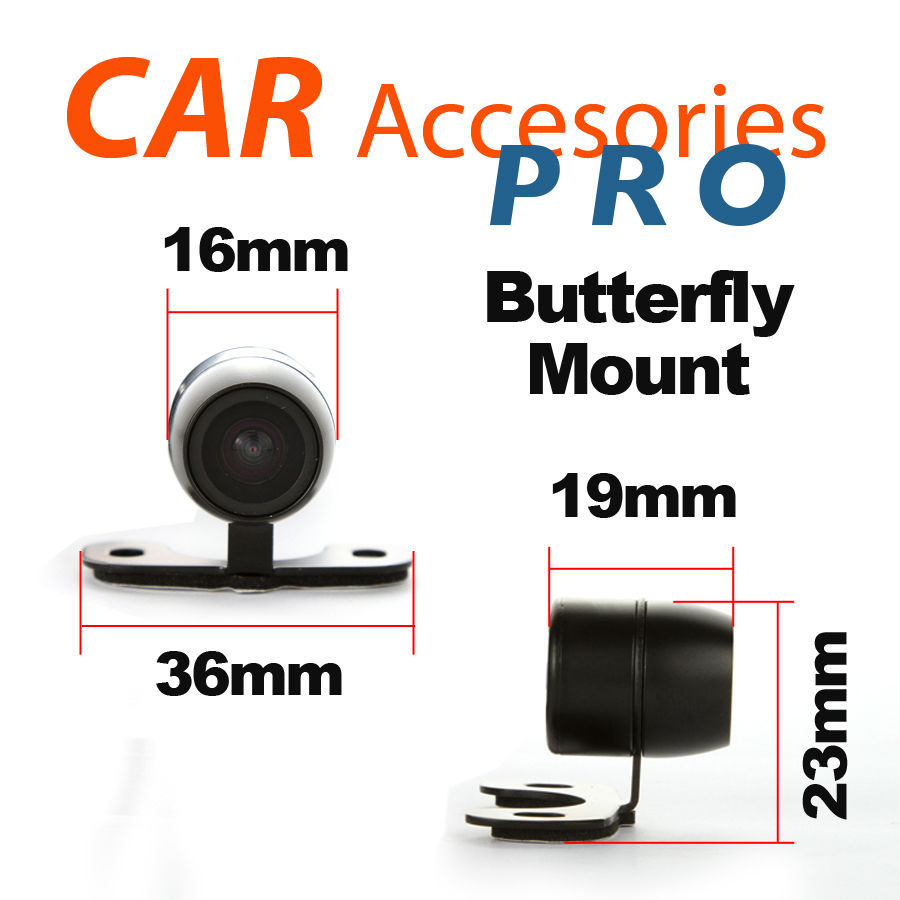

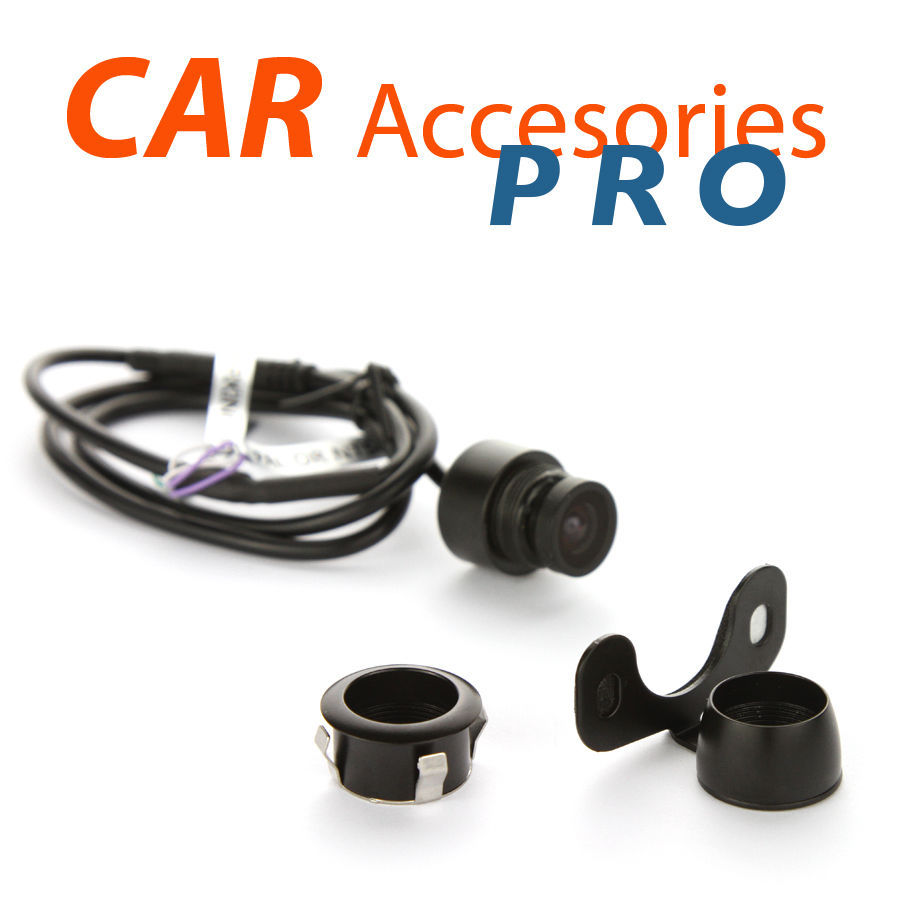

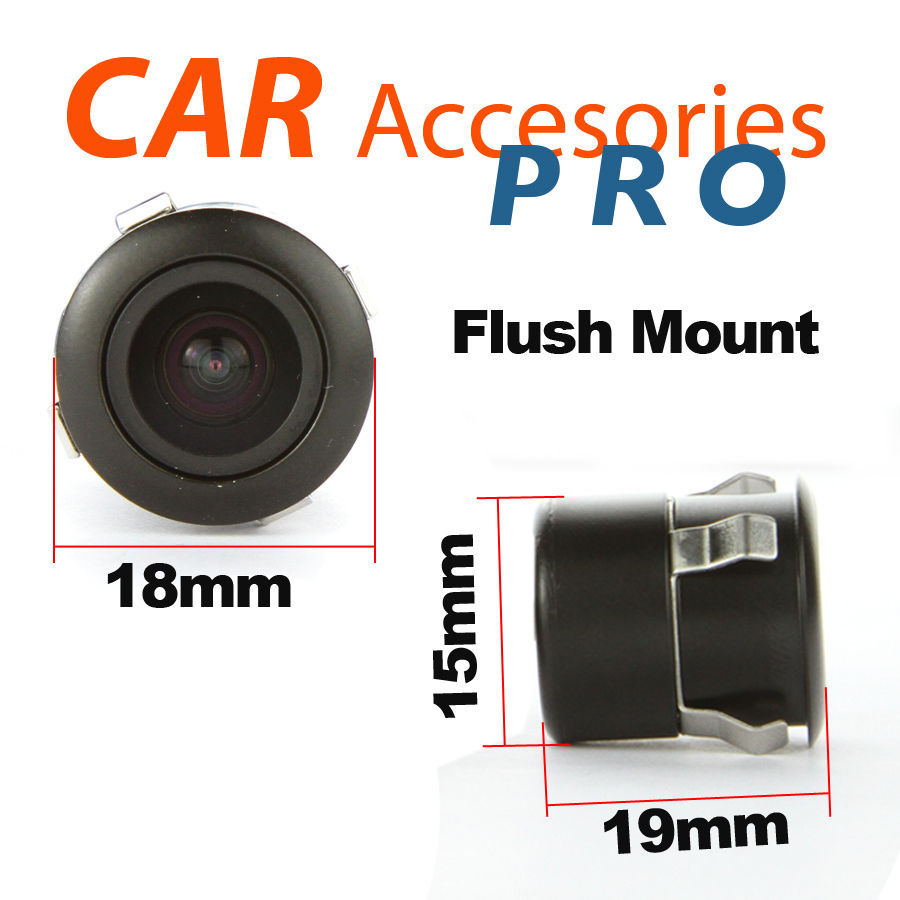

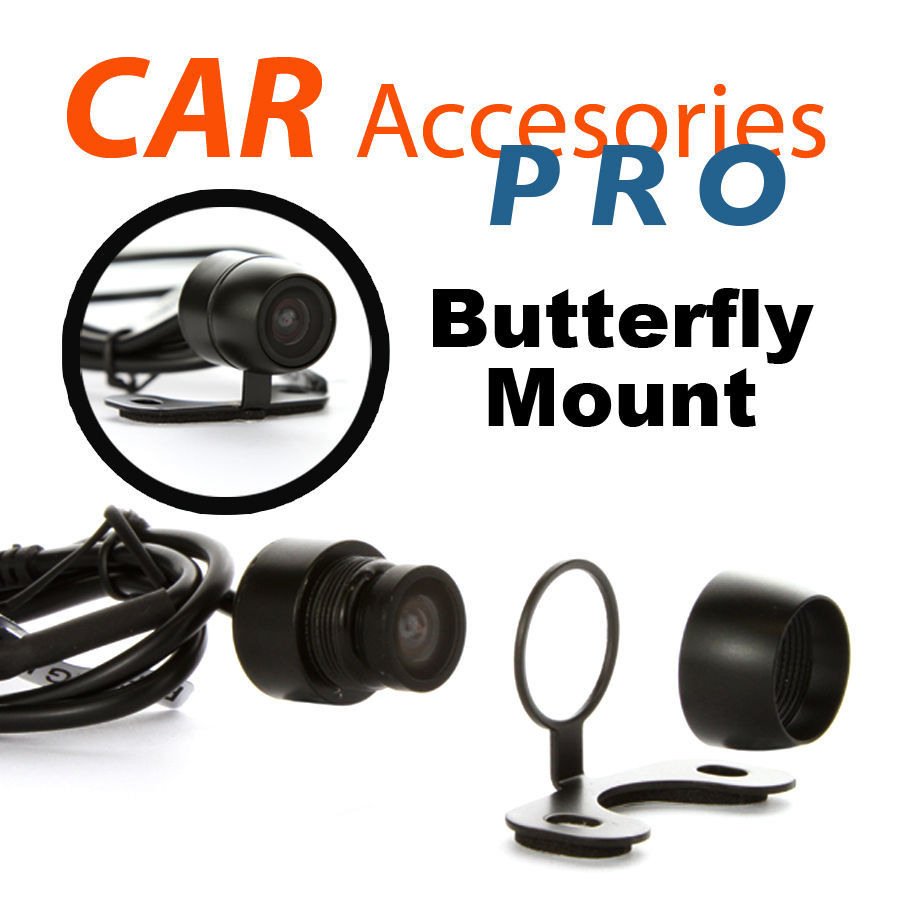

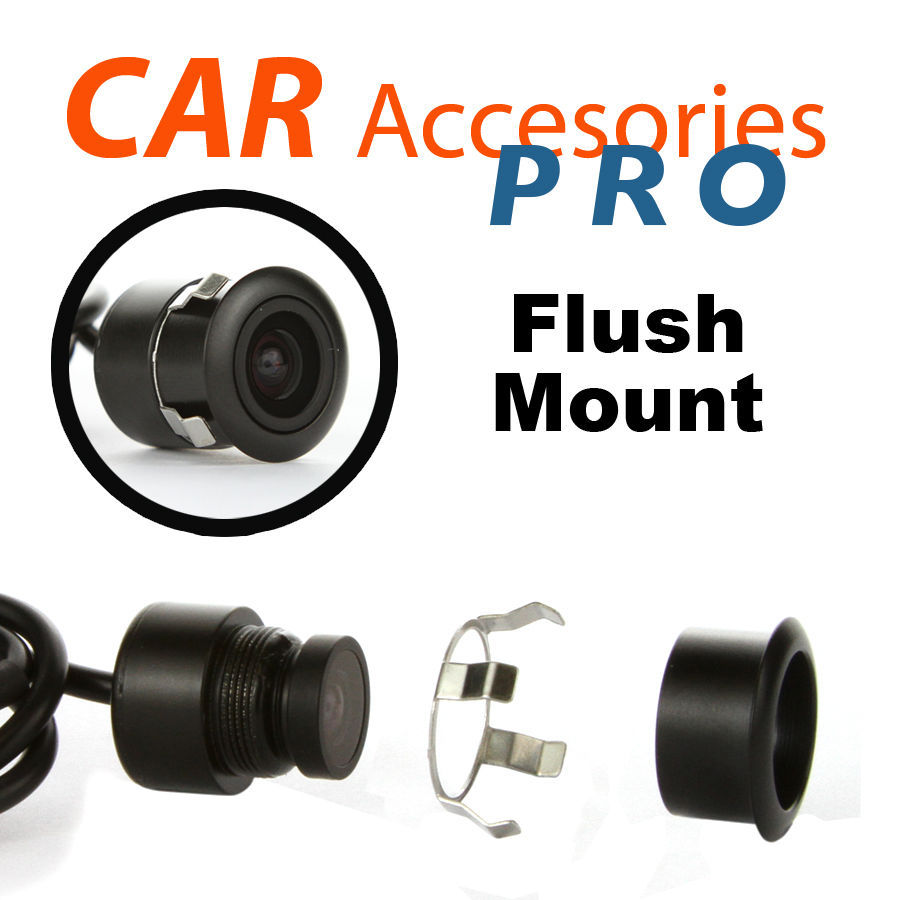

- Miniature CMOS sensor reverse camera that comes with 2 mouting options, butterfly / flush mount which is a truly universal solution for multipurpose vehicle installations.
PAL/NTSC selectable and features with parking guidelines and mirror image.
5 Inch LCD
Screen Size: 5 Inch LCD Display
Video System: PAL / NTSC
Mode: 4:3 or 16:9
Resolution: 800(H)*400(V)
Video Input: 1.0V±0.5Vp-p 75O
Auto Switching: V1 & V2 (Priority)
Operating temperature: -10°C - +50°C
Working Voltage: DC12V (+/-10%)
Consumption: 130mA±10%
CMOS Reverse Camera
Image Sensor: CMOS (PC3089)
Video System: PAL or NTSC (Selectable)
Scanning area: 4.80mm*3.73mm
Resolution: 756(H)*504(V)
Horizontal Resolution: 600 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =46.5dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O

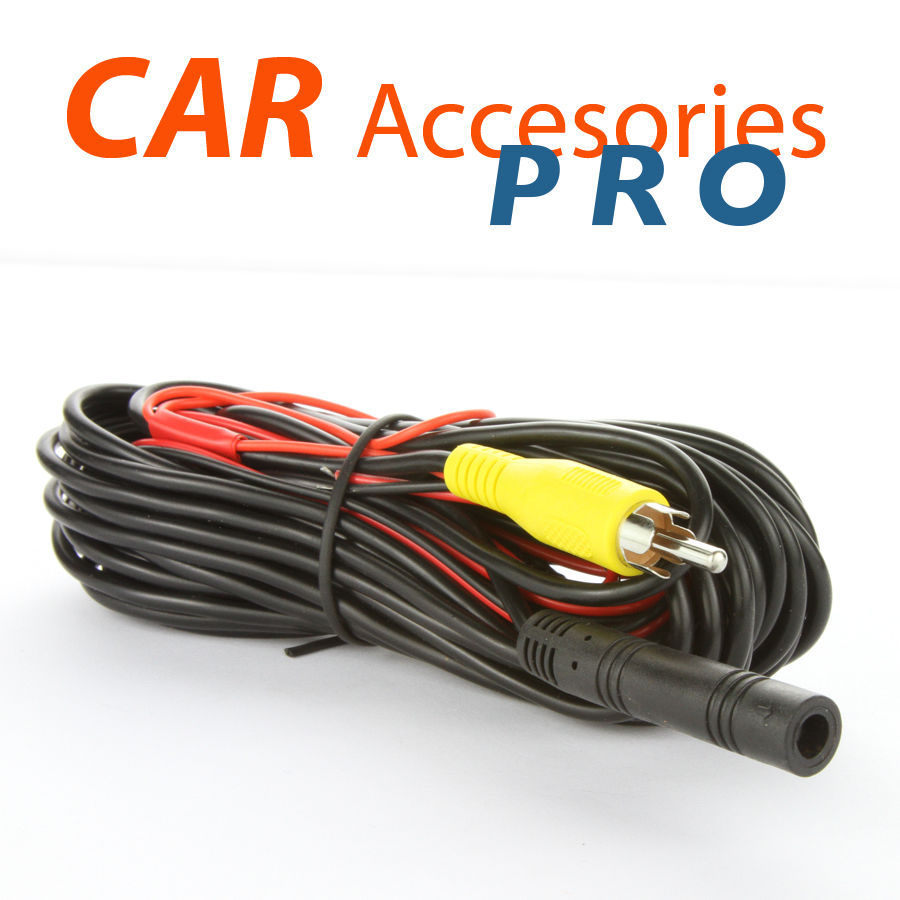

Power Cable: 6 Metres
View Angle: 170°
Working Voltage: DC9V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
| SKU | SPL_RVS50P |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.070m |
| Shipping Length | 0.170m |
