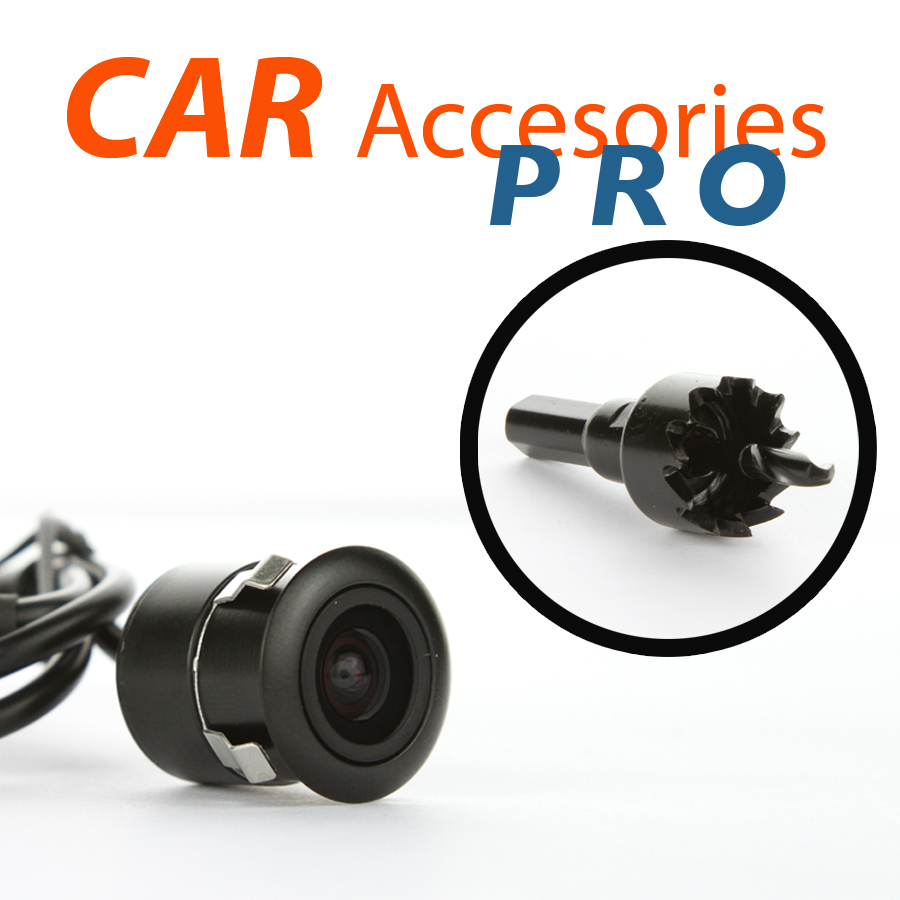

CAR CMOS SENSOR REVERSE CAMERA PARKING 170° ANGLE BUTTERFLY FLUSH MOUNT

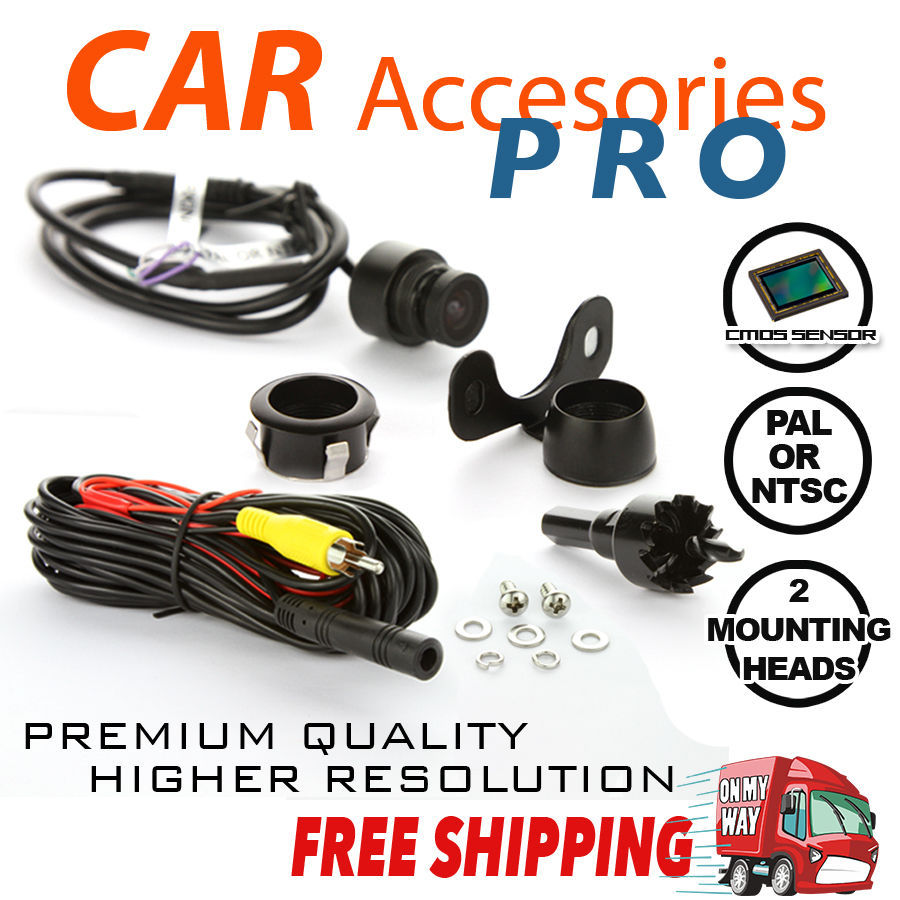

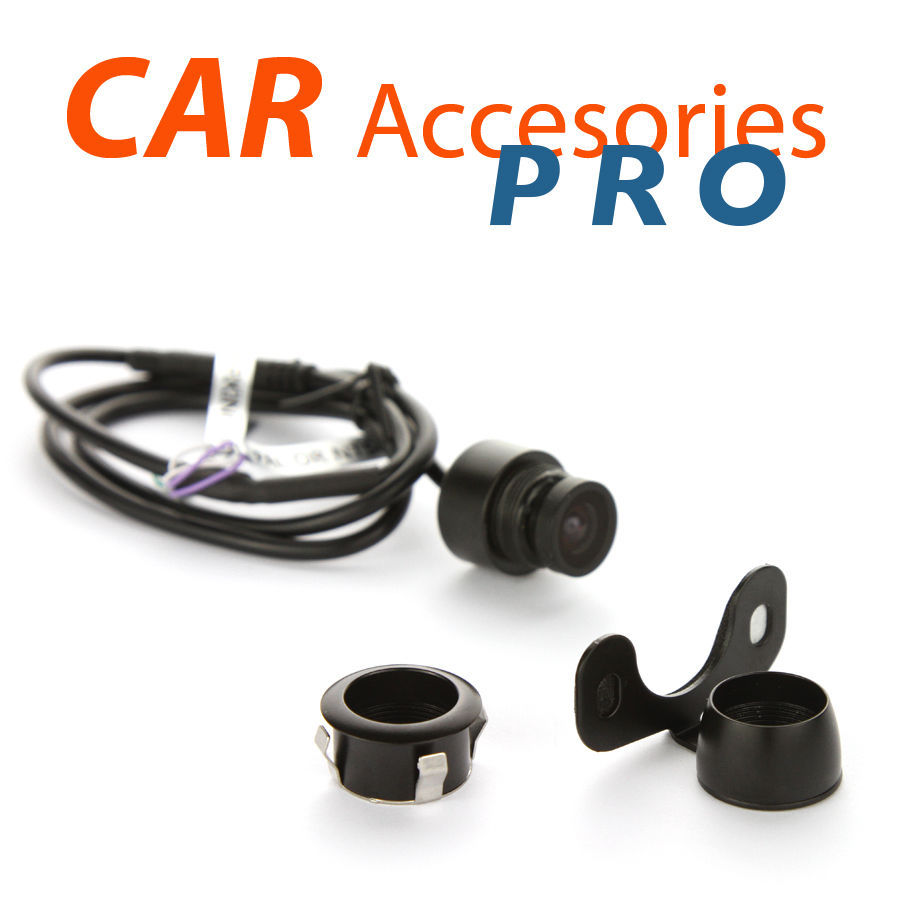

2 TYPES OF CAMERA MOUNTING HEAD INCLUDED
$69.95
In Stock

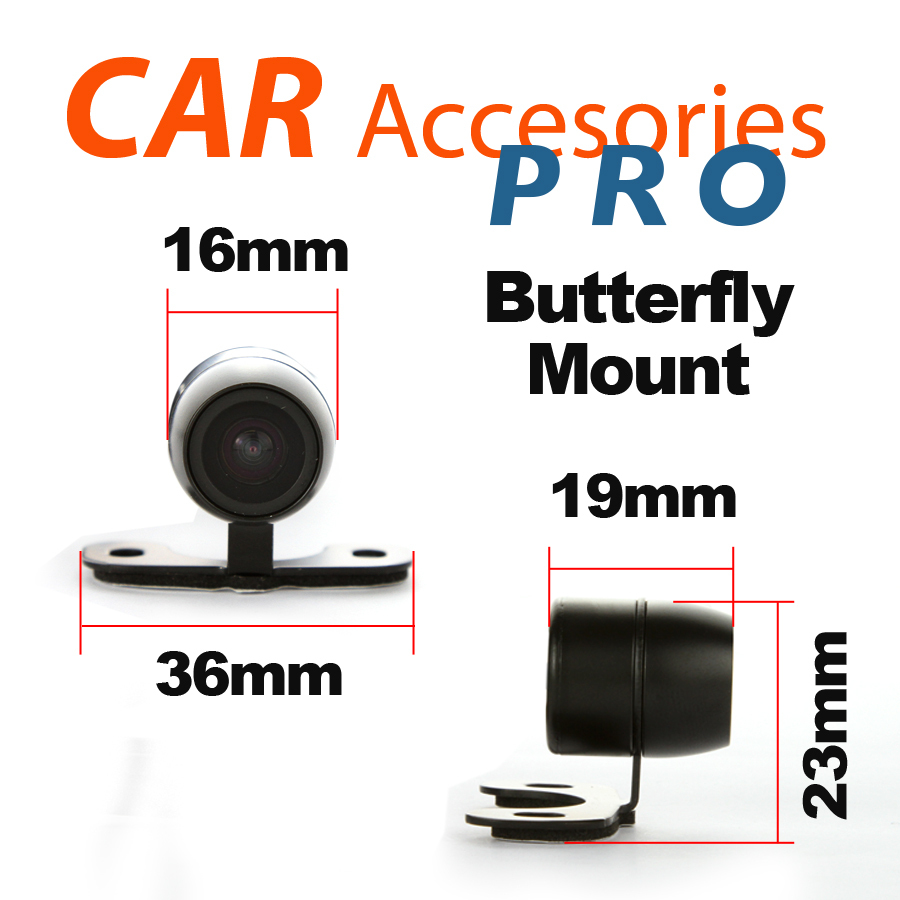

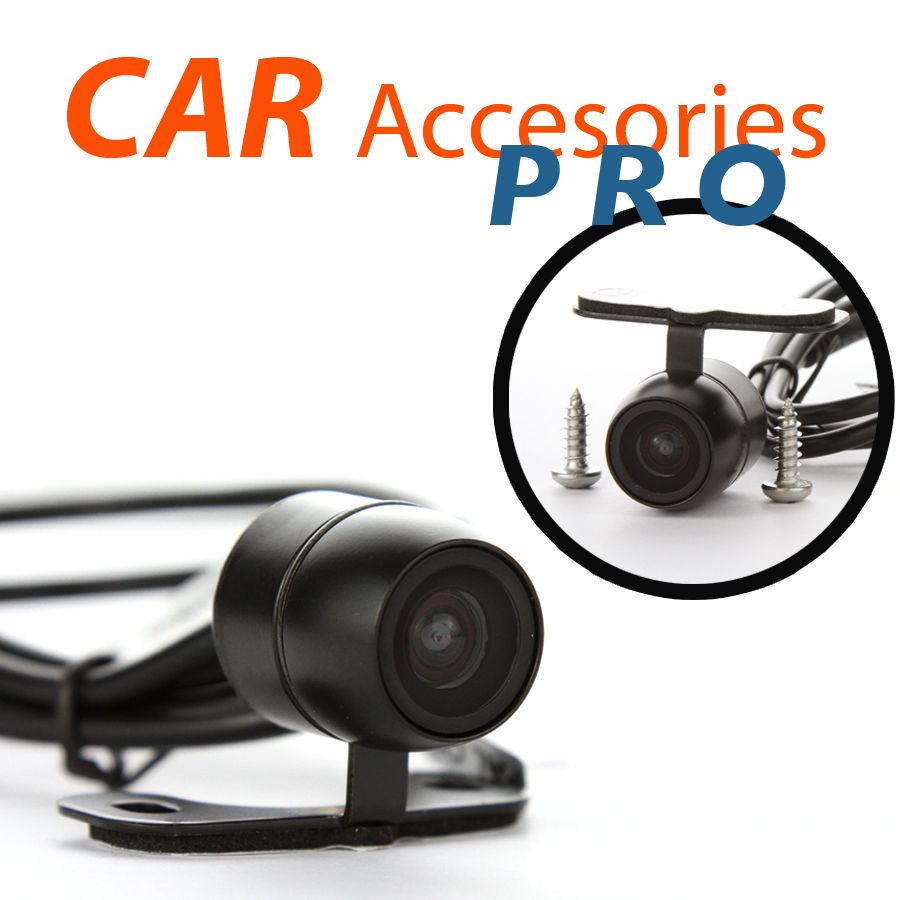

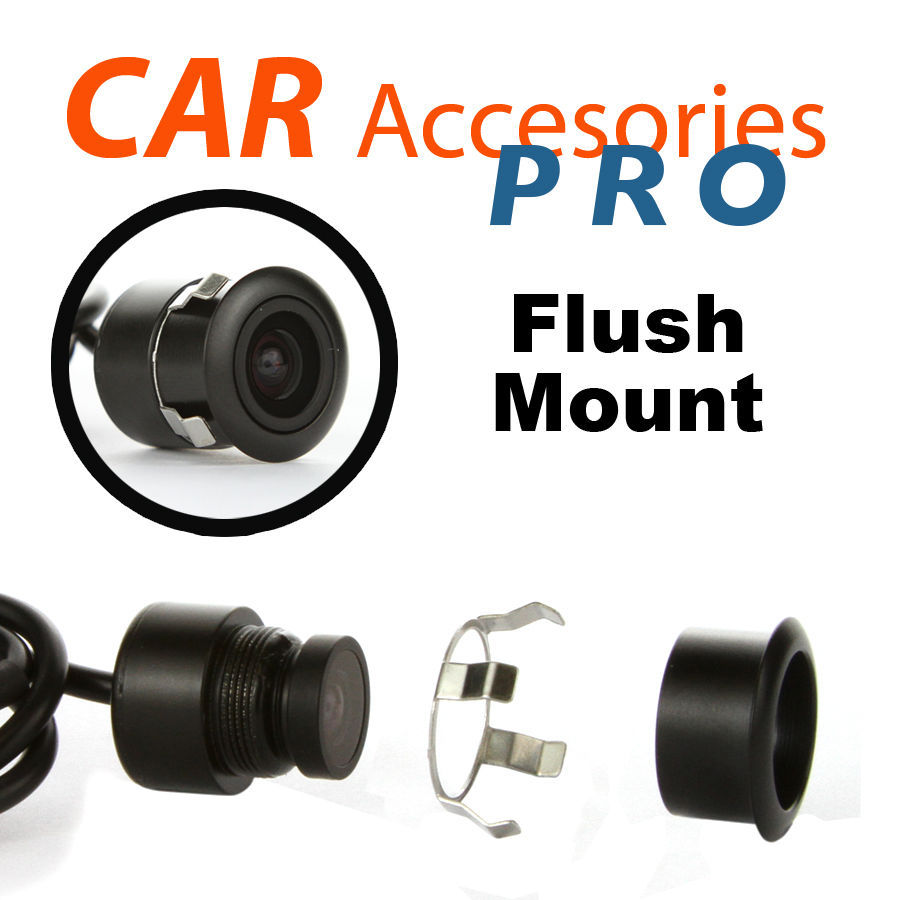

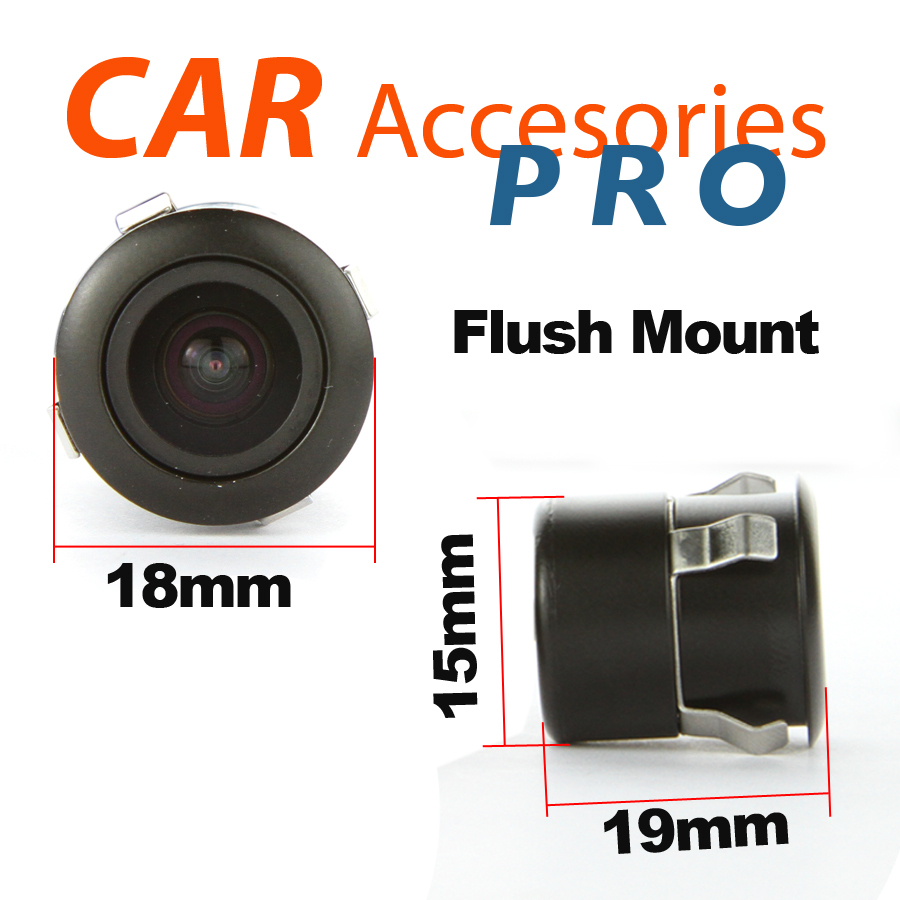

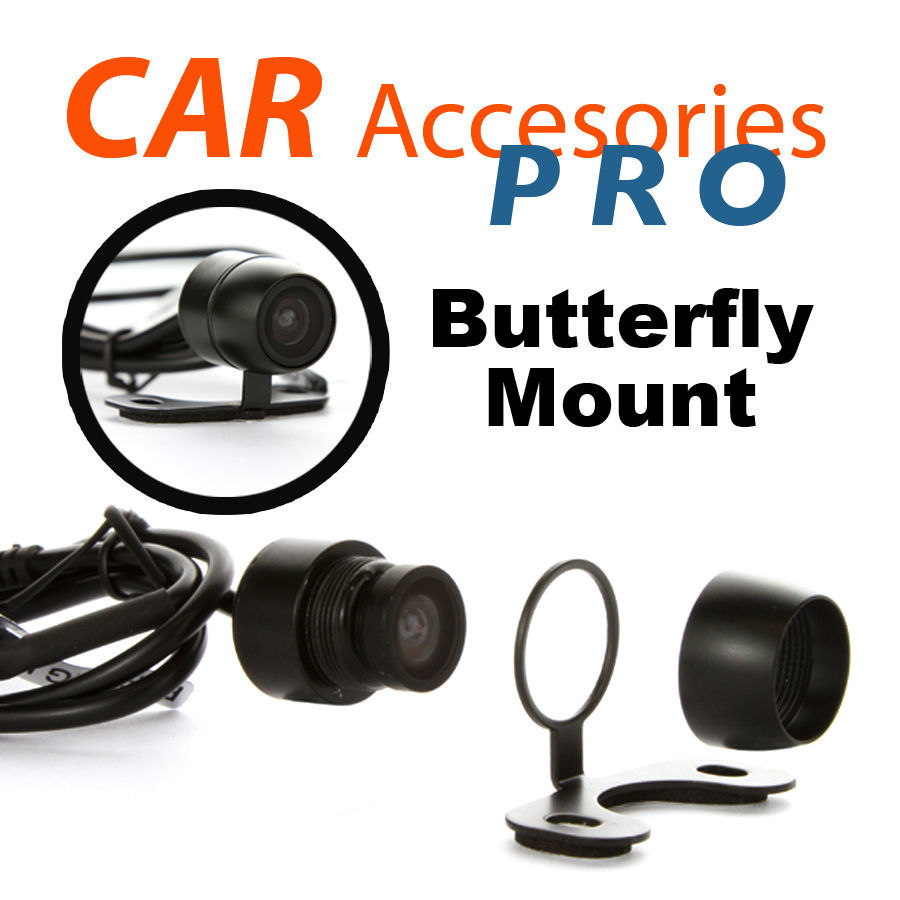

This Miniature CMOS sensor reverse camera that comes with 2 mouting options, butterfly / flush mount which is a truly universal solution for multipurpose vehicle installations. PAL/NTSC selectable and features with parking guidelines and mirror image.
CMOS Reverse Camera
Image Sensor: CMOS (PC3089)
Video System: PAL or NTSC (Selectable)
Scanning area: 4.80mm*3.73mm
Resolution: 756(H)*504(V)
Horizontal Resolution: 600 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =46.5dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC9V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
| SKU | SPL_RCB170 |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.050m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000850000m3 |
